• 6-speaker audio system
• Air conditioning, dual-zone automatic climate control Only available on Crew Cab and Double Cab models.
• Assist handle, front passenger and driver on A-pillars
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system

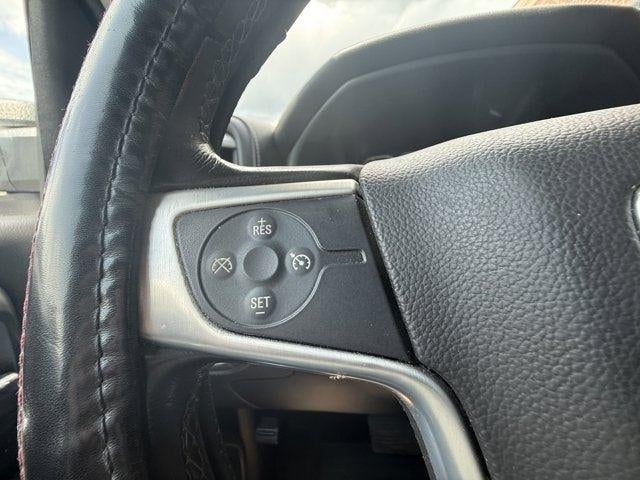

• Cruise control, steering wheel-mounted
• Defogger, rear-window electric
• Door locks, power

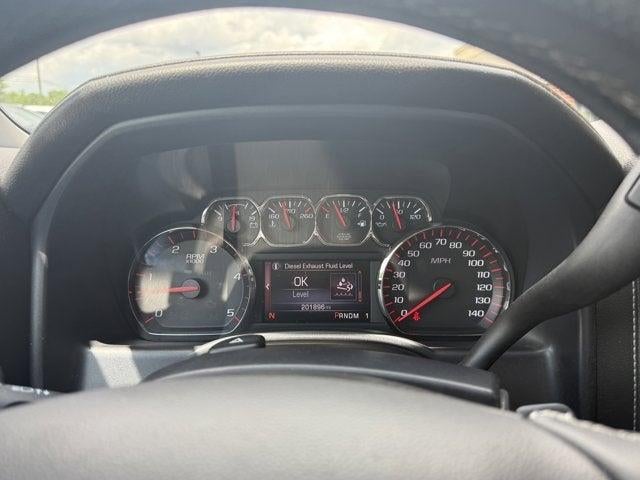

• Driver Information Center 4.2-inch diagonal color display, includes driver personalization, warning messages and vehicle information
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Double Cab and Crew Cabs include second row floor mats)
• Mirror, inside rearview auto-dimming
• OnStar Equipped (subscription required)
• Pedals, power-adjustable for Crew Cab and Double Cab models
• Power outlet, 110-volt AC
• Radio, HD
• Remote keyless entry
• Remote vehicle starter system
• Seat trim, leather-appointed front seats

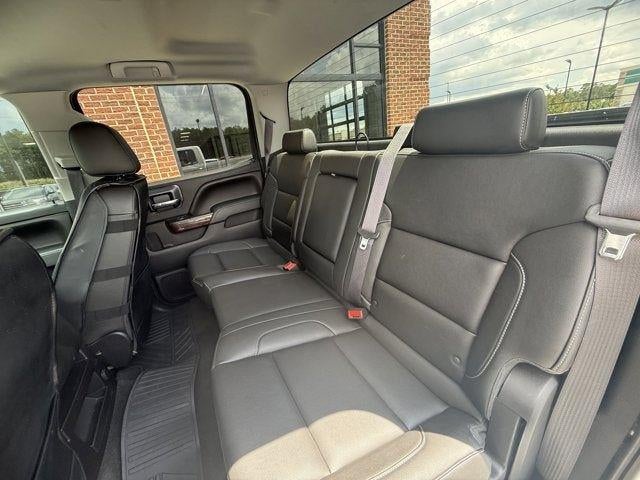

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)
• Seating, heated driver and front passenger Only available on Crew Cab and Double Cab models.
• Single-slot CD/MP3 player (On Crew Cab replaced by (U42) rear seat DVD/Blu-Ray Entertainment Package when (U42) is ordered.)
• Steering column, manual Tilt-Wheel and telescoping

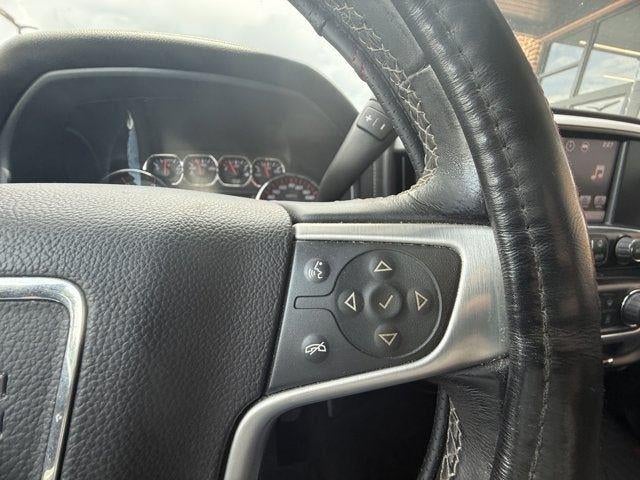

• Steering wheel audio controls

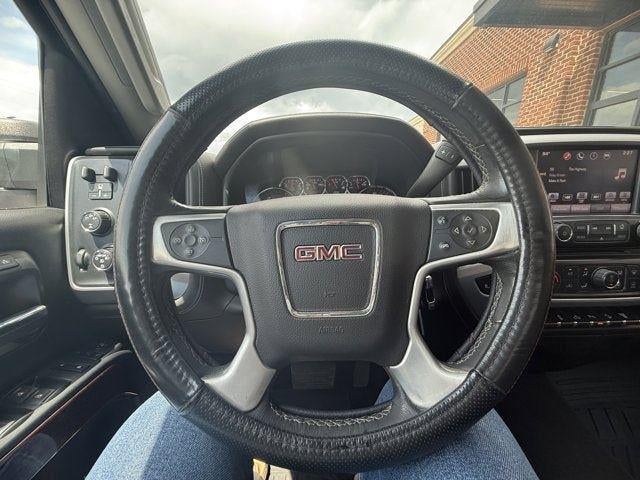

• Steering wheel, leather-wrapped with audio and cruise controls
• Theft-deterrent system, unauthorized entry
• Visors, driver and front passenger illuminated vanity mirrors
• Windows, power with driver express up and down and express down on all other windows

• Air cleaner, high-capacity
• Alternator, 150 amps
• Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, 4-wheel disc with DuraLife brake rotors (Requires single rear wheels.)
• Chassis, single rear wheel
• Differential, heavy-duty locking rear
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, fully-boxed, hydroformed front section
• Pickup box
• Recovery hooks, front, frame-mounted, black
• Steering, Recirculating Ball with smart flow power steering system
• Suspension Package, Standard includes 51mm twin tube shock absorbers and 33mm front stabilizer bar
• Trailer brake controller, integrated (Standard with (E63) pickup box. Available to order with (ZW9) pickup box delete.)
• Trailering equipment Trailering hitch platform 2.5" with a 2.0" insert for HD, 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector to hook up parking lamps, backup lamps, right and left turn signals, an electric brake lead, battery and a ground, The trailer connector also includes the 4-way for use on trailers without brakes - park, brake/turn lamps (Deleted when (ZW9) pickup box delete or (9J4) rear bumper delete is ordered.)
• Transfer case, electronic shift with rotary dial controls (Requires 4WD models.)

• Daytime Running Lamps with automatic exterior lamp control
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist

LPO, SIERRA BODY-COLOR ACCENTED GRILLE

• (dealer-installed)

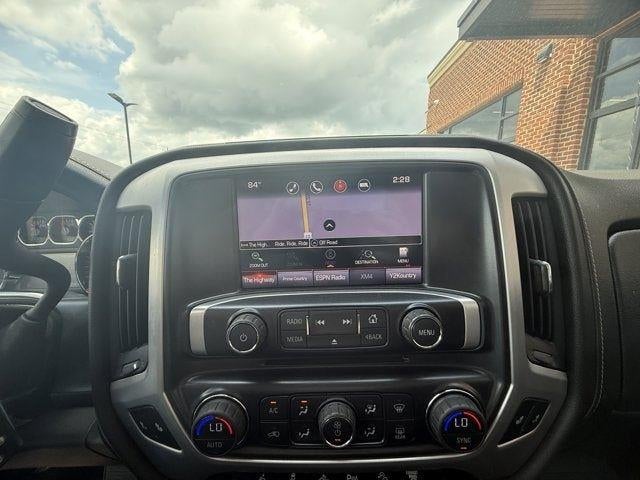

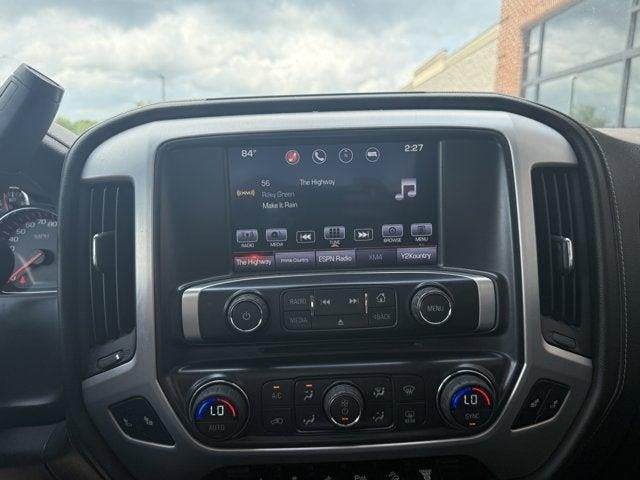

AUDIO SYSTEM, 8" DIAGONAL COLOR TOUCH SCREEN NAVIGATION WITH INTELLILINK, AM/FM/SIRIUSXM, HD RADIO

• with USB ports
• auxiliary jack
• Bluetooth® streaming audio for music and most phones
• advanced phone integration featuring Apple CarPlay
• Pandora Internet radio and voice-activated technology for radio and phone

SUSPENSION PACKAGE, OFF-ROAD

• includes Z71 chrome front fender emblems
• twin tube Rancho brand shocks
• (JHD) Hill Descent Control
• (NZZ) underbody shield and Off-Road Driver Information Center graphics.

WHEEL, 18" X 8" (45.7 CM X 20.3 CM) FULL-SIZE, STEEL SPARE.

• Spare not included with (ZW9) pickup box delete unless a spare tire is ordered.

ENGINE, DURAMAX 6.6L TURBO DIESEL V8, B20-DIESEL COMPATIBLE

• (397 hp [296.0 kW] @ 3000 rpm
• 765 lb-ft of torque [1032.8 N-m] @ 1600 rpm) Includes (K40) exhaust brake and (K05) engine block heater.

TRANSMISSION, ALLISON 1000 6-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

• with overdrive
• electronic engine grade braking and tow/haul mode

LPO, ALL-WEATHER FLOOR MATS

• front and rear on Crew Cab and Double Cab; front only on Regular Cab (dealer-installed)

DURAMAX PLUS PACKAGE

• includes (LML) Duramax 6.6L Turbo Diesel V8 engine
• (MW7) Allison 1000 6-speed automatic transmission
• (UQA) Bose premium audio system
• (UD5) front and rear park assist and (IO6) 8" Diagonal Color Touch Screen Navigation with IntelliLink

4SA PREFERRED EQUIPMENT GROUP

• includes standard equipment

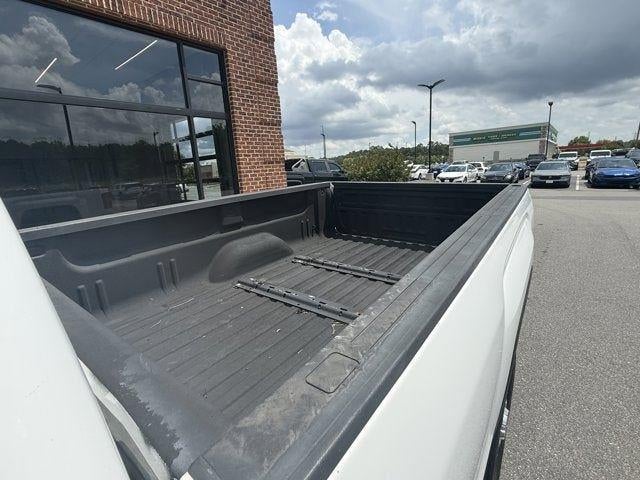

BED LINER, SPRAY-ON

• Pickup box bed liner with GMC logo consisting of high pressure
• chemically bonded
• sprayed-on polyurea & polyurethane liner formulation. Liner is permanently bonded to the truck bed providing a water tight seal. The textured
• non-skid surface is black in color and robotically applied. Spray-on liner covers entire bed interior surface below side rails
• including tailgate
• front box top rail
• gage hole plugs and lower tie down loops.

PICKUP BOX

• (STD)

PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON

• provides an instrument panel mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp

TRAILERING WIRING PROVISIONS, FOR CAMPER, FIFTH WHEEL AND GOOSENECK TRAILER

• includes additional 7-way wiring harness is located at the rear of the pickup box attached to the rear frame cross member

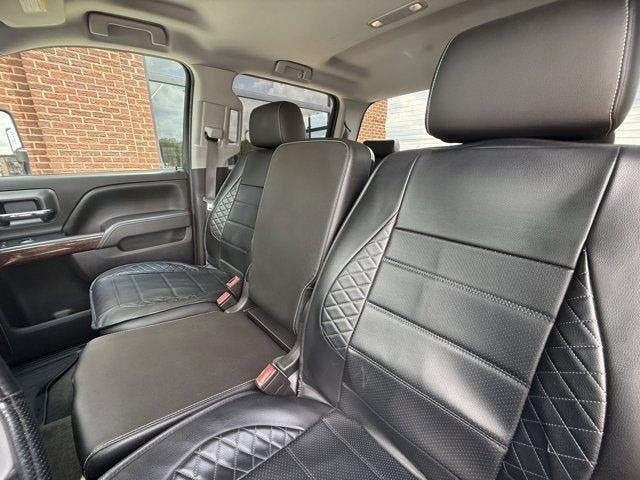

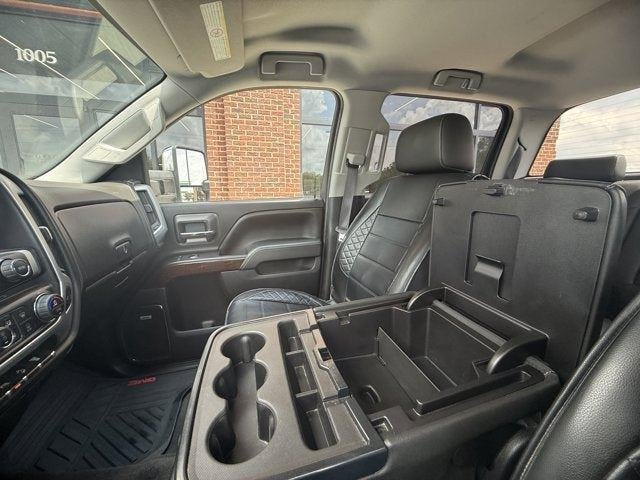

SEATS, FRONT 40/20/40 LEATHER-APPOINTED SPLIT-BENCH, 3-PASSENGER WITH (KA1) HEATED SEAT CUSHIONS AND SEAT BACKS.

• Includes 10-way power driver and front passenger seat adjusters
• including driver/front passenger power recline
• driver/front passenger power lumbar
• 2- position driver memory and adjustable outboard head restraints. (STD)

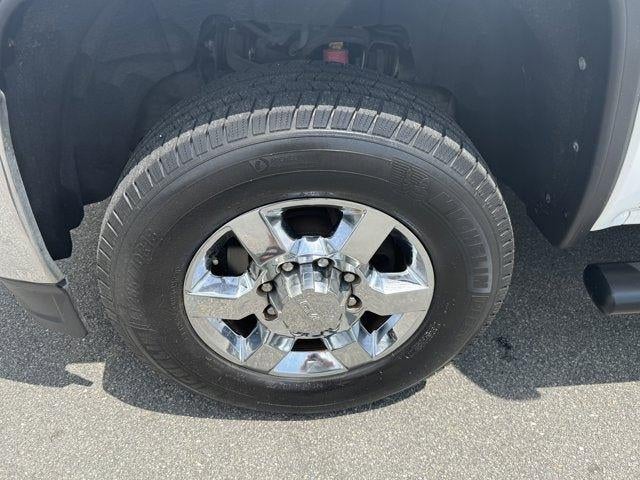

WHEELS, 18" (45.7 CM) CHROMED ALUMINUM

• includes 18" x 8" (45.7 cm x 20.3 cm) steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered. (STD)

LICENSE PLATE KIT, FRONT

• Note: (VK3) deletes center lower bumper filler panel.

UNDERBODY SHIELD, FRAME-MOUNTED SHIELDS

• includes front underbody shield starting behind front bumper and running to first cross-member
• protecting front underbody
• oil pan
• differential case and transfer case

• GVWR 11 600 LBS. (5262 KG) WITH SINGLE REAR WHEELS
• LPO SIERRA BODY-COLOR ACCENTED GRILLE (dealer-installed)
• HILL DESCENT CONTROL
• SUMMIT WHITE
• ENGINE BLOCK HEATER
• AUDIO SYSTEM 8" DIAGONAL COLOR TOUCH SCREEN NAVIGATION WITH INTELLILINK AM/FM/SIRIUSXM HD RADIO with USB ports auxiliary jack Bluetooth® streaming audio for music and most phones advanced phone integration featuring Apple CarPlay Pandora Internet radio and voice-activated technology for radio and phone
• SUSPENSION PACKAGE OFF-ROAD includes Z71 chrome front fender emblems twin tube Rancho brand shocks (JHD) Hill Descent Control (NZZ) underbody shield and Off-Road Driver Information Center graphics.
• TIRE SPARE LT265/70R18E ALL-SEASON BLACKWALL
• WHEEL 18" X 8" (45.7 CM X 20.3 CM) FULL-SIZE STEEL SPARE. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered.
• ENGINE DURAMAX 6.6L TURBO DIESEL V8 B20-DIESEL COMPATIBLE (397 hp [296.0 kW] @ 3000 rpm 765 lb-ft of torque [1032.8 N-m] @ 1600 rpm) Includes (K40) exhaust brake and (K05) engine block heater.
• TRAILER BRAKE CONTROLLER INTEGRATED
• REAR AXLE 3.73 RATIO
• TRANSMISSION ALLISON 1000 6-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive electronic engine grade braking and tow/haul mode
• LPO ALL-WEATHER FLOOR MATS front and rear on Crew Cab and Double Cab; front only on Regular Cab (dealer-installed)
• TIRES LT265/70R18E ALL-TERRAIN BLACKWALL
• DURAMAX PLUS PACKAGE includes (LML) Duramax 6.6L Turbo Diesel V8 engine (MW7) Allison 1000 6-speed automatic transmission (UQA) Bose premium audio system (UD5) front and rear park assist and (IO6) 8" Diagonal Color Touch Screen Navigation with IntelliLink
• 4SA PREFERRED EQUIPMENT GROUP includes standard equipment
• BED LINER SPRAY-ON Pickup box bed liner with GMC logo consisting of high pressure chemically bonded sprayed-on polyurea & polyurethane liner formulation. Liner is permanently bonded to the truck bed providing a water tight seal. The textured non-skid surface is black in color and robotically applied. Spray-on liner covers entire bed interior surface below side rails including tailgate front box top rail gage hole plugs and lower tie down loops.
• PICKUP BOX (STD)
• BOSE SOUND WITH 6 SPEAKER SYSTEM (7 speaker system including subwoofer when ordered with bucket seats).
• PAINT SOLID
• PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON provides an instrument panel mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp
• TRAILERING WIRING PROVISIONS FOR CAMPER FIFTH WHEEL AND GOOSENECK TRAILER includes additional 7-way wiring harness is located at the rear of the pickup box attached to the rear frame cross member
• SEATS FRONT 40/20/40 LEATHER-APPOINTED SPLIT-BENCH 3-PASSENGER WITH (KA1) HEATED SEAT CUSHIONS AND SEAT BACKS. Includes 10-way power driver and front passenger seat adjusters including driver/front passenger power recline driver/front passenger power lumbar 2- position driver memory and adjustable outboard head restraints. (STD)
• FRONT AND REAR PARK ASSIST ULTRASONIC
• JET BLACK LEATHER-APPOINTED FRONT SEAT TRIM
• DELETE UNIVERSAL HOME REMOTE/POWER REAR SLIDING WINDOW TRACKING CODE
• WHEELS 18" (45.7 CM) CHROMED ALUMINUM includes 18" x 8" (45.7 cm x 20.3 cm) steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered. (STD)
• LICENSE PLATE KIT FRONT Note: (VK3) deletes center lower bumper filler panel.
• EXHAUST BRAKE
• UNDERBODY SHIELD FRAME-MOUNTED SHIELDS includes front underbody shield starting behind front bumper and running to first cross-member protecting front underbody oil pan differential case and transfer case
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hitch
• Tow Hooks
• Power Steering
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Chrome Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• HID headlights
• Fog Lamps
• Heated Mirrors
• Power Mirror(s)
• Integrated Turn Signal Mirrors
• Power Folding Mirrors
• Privacy Glass
• AM/FM Stereo
• Satellite Radio
• MP3 Capability
• Bluetooth® Connection
• Auxiliary Audio Input
• HD Radio
• Requires Subscription
• CD Player
• Satellite Radio
• Requires Subscription
• HD Radio
• Bluetooth® Connection
• Power Driver Seat
• Power Passenger Seat
• Split Bench Seat
• Heated Front Seat(s)
• Driver Adjustable Lumbar
• Passenger Adjustable Lumbar
• Seat Memory
• Telematics
• WiFi Hotspot
• Requires Subscription
• Leather Seats
• Heated Front Seat(s)
• Pass-Through Rear Seat
• Rear Bench Seat
• Floor Mats
• Adjustable Steering Wheel
• Cruise Control
• Steering Wheel Audio Controls
• Leather Steering Wheel
• Steering Wheel Audio Controls
• Power Windows
• Power Door Locks
• Keyless Entry
• Power Door Locks
• Remote Engine Start
• Adjustable Pedals
• Cruise Control
• Security System
• Climate Control
• Multi-Zone A/C
• A/C
• Rear Defrost
• Auto-Dimming Rearview Mirror
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• Telematics
• Navigation from Telematics
• Requires Subscription
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag

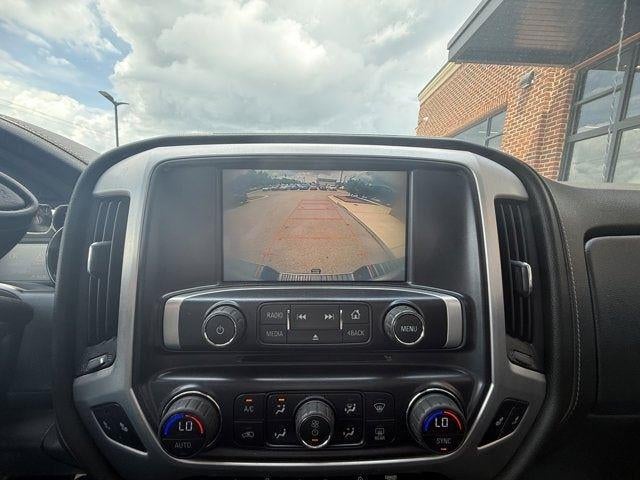

• Back-Up Camera

• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 7050
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 11600
• Gross Vehicle Weight Rating Cap (lbs): 11000
• Gross Combined Wt Rating (lbs): 24500
• Gross Combined Wt Rating (lbs): 20500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 15000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13700
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1370
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 16900
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 13700
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4225
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3425
• Maximum Trailering Capacity (lbs): 22600
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 7050
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 5600
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 7050
• Axle Ratio (:1) - Rear: 3.73
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 51.00
• Shock Absorber Diameter - Rear (mm): 51.00
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): - TBD -
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Tires
• Front Tire Order Code: QGM
• Front Tire Order Code: QWF
• Rear Tire Order Code: QGM
• Rear Tire Order Code: QWF
• Spare Tire Order Code: ZWF
• Front Tire Size: LT265/70R18E
• Rear Tire Size: LT265/70R18E
• Spare Tire Size: LT265/70R18E
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 18 x 8.0
• Rear Wheel Size (in): 18 x 8.0
• Spare Wheel Size (in): 18 x 8.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: 16.00
• Steering Ratio (:1), At Lock: N/A
• Turning Diameter - Curb to Curb (ft): 56.1
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 167.70
• Length, Overall w/o rear bumper (in): 258.4
• Width, Max w/o mirrors (in): 80.51
• Height, Overall (in): 78.07
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 151.10
• Cab to Axle (in): 55.24
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 39.41
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 8.53
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.76
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 51.02
• Cargo Box (Area) Height (in): 21.22
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 76.3
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 64.84
• Front Hip Room (in): 60.73
• Second Head Room (in): 40.50
• Second Leg Room (in): 40.93
• Second Shoulder Room (in): 64.33
• Second Hip Room (in): 60.24
• Summary
• Vehicle Name: GMC Sierra 3500HD
• Body Style: Crew Cab Pickup
• Body Code: E63
