• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Audio system feature, 4-speaker system
• Cruise control, steering wheel-mounted
• Door locks, power
• Floor covering, Graphite-colored rubberized-vinyl
• Mirror, inside rearview manual day/night

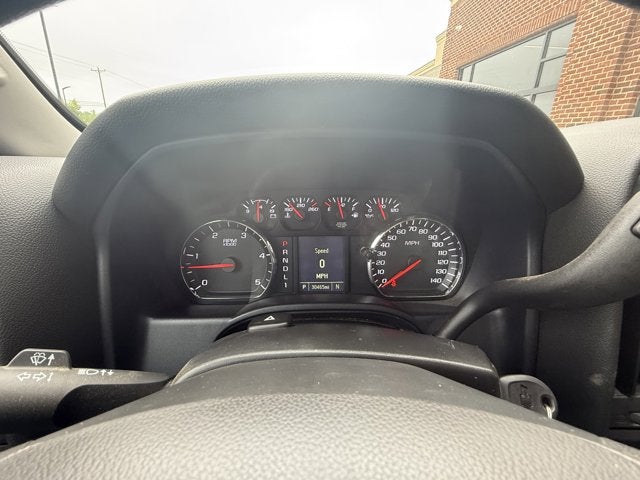

• Speedometer, miles/kilometers
• Steering column, manual Tilt-Wheel

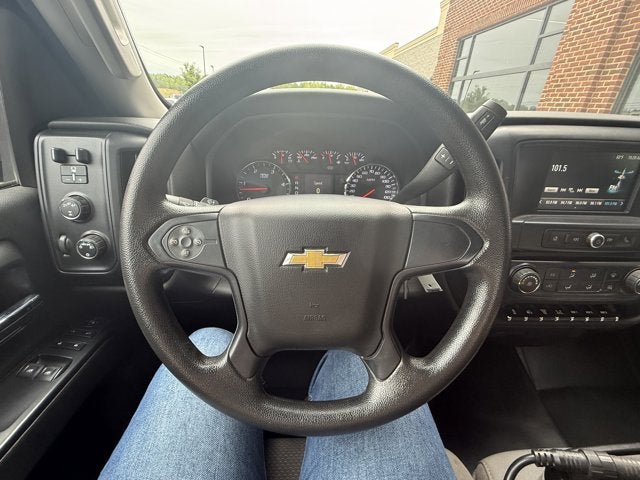

• Steering wheel, urethane
• Visors, driver and front passenger, vinyl

• Alternator, 150 amps
• Exhaust system, rear exit
• Four wheel drive
• Fuel, diesel B20

• Daytime Running Lamps, with automatic exterior lamp control
• Horn, single-note
• OnStar, delete
• Traction control

BATTERIES, HEAVY-DUTY DUAL 1300 COLD-CRANKING AMPS

• includes battery box mounted to left side under cab

ONSTAR AND CHEVROLET CONNECTED SERVICES CAPABLE

• Includes compass in instrument cluster.

BACKUP ALARM

• (Includes (SFW) SEO Calibration for backup alarm.

MIRRORS, OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING, UPPER GLASS, MANUAL-FOLDING AND EXTENDING, BLACK.

• Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp

TIRES, REAR 225/70R19.5G TRACTION BLACKWALL GOODYEAR

• Max Axle Load: 15
• 000 lb.

POWER TAKE OFF, ENGINE CONTROL PROVISIONS

• Access is available on left-hand and right-hand side

BACK-UP ALARM CALIBRATION

• This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

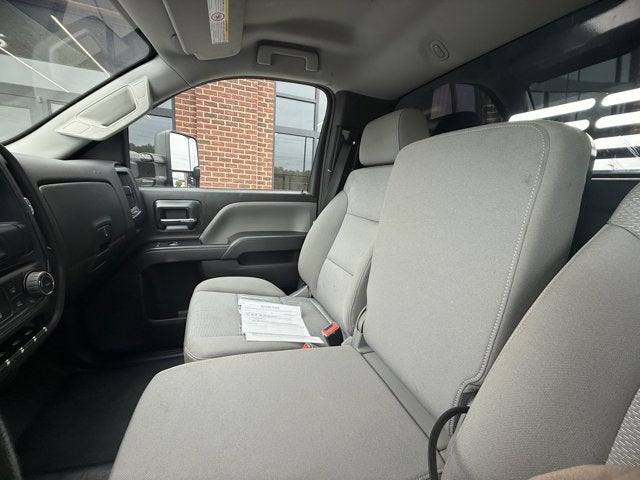

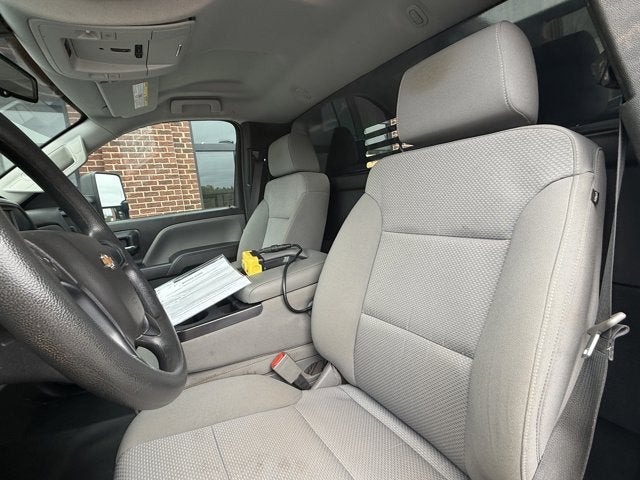

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER

• driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)

PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON

• provides an overhead console mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp

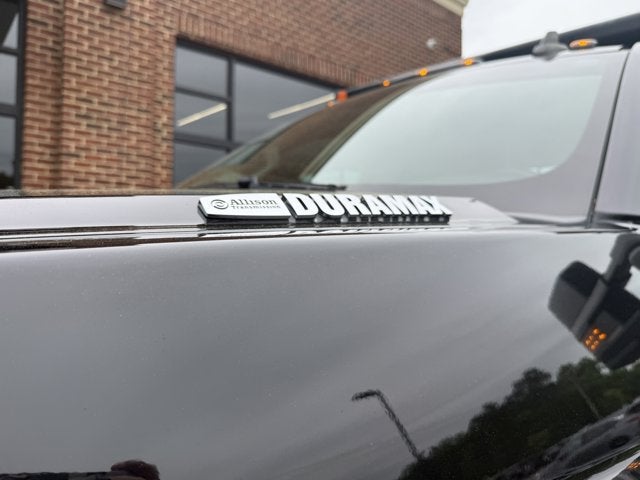

ENGINE, DURAMAX 6.6L TURBO-DIESEL V8, B20-DIESEL COMPATIBLE

• 350 hp @ 2700 rpm
• 700 lb.-ft. torque @ 1600 rpm (STD)

BATTERY, TOP POST THREADED, BATTERY JUMP START STUD

• (located on battery box)

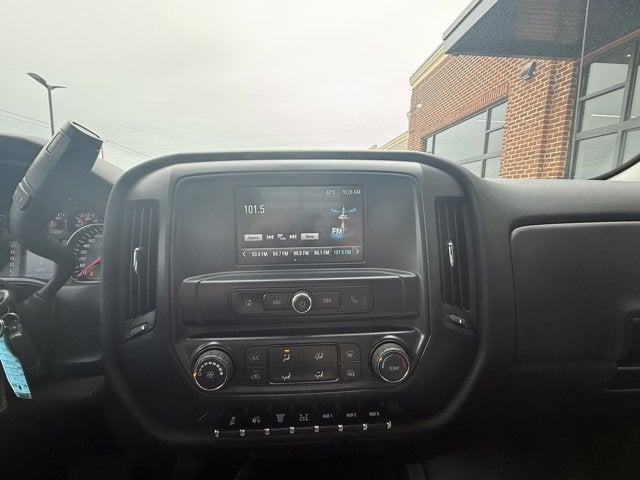

AUDIO SYSTEM, 7" DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT

• AM/FM stereo with seek-and-scan and digital clock
• includes Bluetooth® streaming audio for music and select phones. (Includes (UQ3) 6-speaker audio system.

WHEELBASE, 165" (419.1 CM), 84" CA

• (STD)

SPARE TIRE DELETE

• (STD)

REAR AXLE, 4.30 RATIO

• Max road speed: 75 MPH

TIRES, FRONT 225/70R19.5G TRACTION BLACKWALL GOODYEAR

• Max Axle Load: 7
• 940 lb.

SNOW PLOW PREP PACKAGE

• includes (UNL) auxiliary harness for headlamps and turn signals
• (KW5) 220-amp alternator
• forward lamp wiring harness and (TRW) provision for cab roof mounted lamp/beacon

ELECTRICAL PROVISIONS, REAR OF FRAME, UPFITTER, BODY BUILDER WIRING

• includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn

DPF, DIESEL PARTICULATE FILTER, MANUAL REGENERATION

• customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown

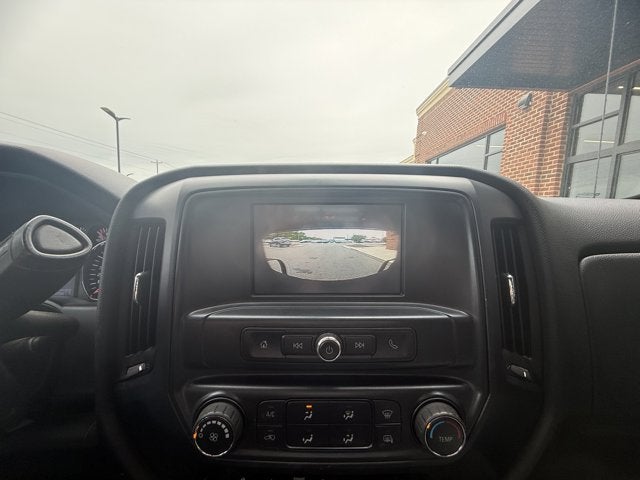

REAR VISION CAMERA, DISPLAY INTEGRATED INTO RADIO

• (Shipped loose in cab for upfitter installation.)

RUGGED DUTY SERVICE TRANSMISSION, AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE, ALLISON, A1750RDS

• ratios 3.10 1ST
• 1.80 2ND
• 1.40 3RD
• 1.00 4TH
• 0.70 5TH
• 0.61 Rugged Duty Series

• BATTERIES HEAVY-DUTY DUAL 1300 COLD-CRANKING AMPS includes battery box mounted to left side under cab
• ONSTAR AND CHEVROLET CONNECTED SERVICES CAPABLE Includes compass in instrument cluster.
• 30 000 LB. GCWR (13 607 KG)
• BACKUP ALARM (Includes (SFW) SEO Calibration for backup alarm.
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING UPPER GLASS MANUAL-FOLDING AND EXTENDING BLACK. Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
• SKID PLATE STEEL FRAME-MOUNTED PROTECTS THE TRANSFER CASE FROM THE GROUND
• GVWR 19 500 LB. (8845 KG)

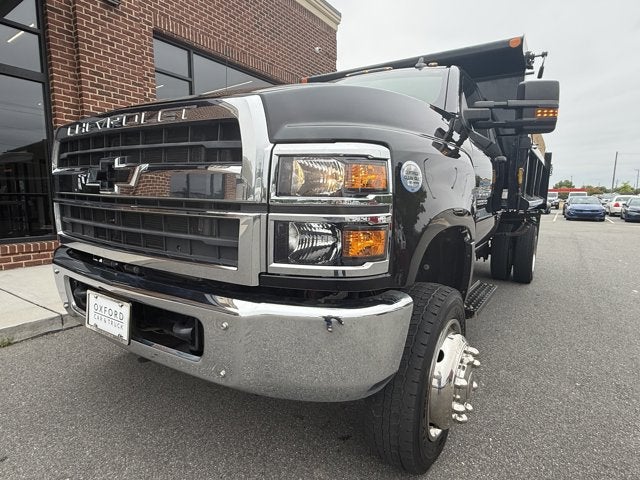

• GRILLE CHROME
• BUMPER FRONT CHROME
• TIRES REAR 225/70R19.5G TRACTION BLACKWALL GOODYEAR Max Axle Load: 15 000 lb.
• POWER TAKE OFF ENGINE CONTROL PROVISIONS Access is available on left-hand and right-hand side
• TRAILER BRAKE CONTROLLER INTEGRATED
• LICENSE PLATE KIT FRONT
• FUEL TANK FRONT AND REAR 65 GALLON TOTAL
• BACK-UP ALARM CALIBRATION This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting
• POWER OUTLET 110-VOLT AC
• REMOTE KEYLESS ENTRY
• WHEELS 19.5" X 6.75" STEEL GREY PAINTED 8-HOLES HUB PILOTED
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
• PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON provides an overhead console mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp
• ENGINE DURAMAX 6.6L TURBO-DIESEL V8 B20-DIESEL COMPATIBLE 350 hp @ 2700 rpm 700 lb.-ft. torque @ 1600 rpm (STD)
• 6-SPEAKER AUDIO SYSTEM
• BATTERY TOP POST THREADED BATTERY JUMP START STUD (located on battery box)
• AUDIO SYSTEM 7" DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT AM/FM stereo with seek-and-scan and digital clock includes Bluetooth® streaming audio for music and select phones. (Includes (UQ3) 6-speaker audio system.
• 4G LTE WI-FI HOTSPOT CAPABLE
• REAR SUSPENSION 13 500 LB. (6 123 KG) MULTI-LEAF VARI-RATE
• TRAILERING PROVISIONS TRAILERING WIRE HARNESS ONLY TRAILER COMBINED (STOP/TAIL/TURN) CONNECTION SOCKET AND HARNESS MOUNTED AT REAR OF FRAME.
• WINDOWS POWER WITH DRIVER EXPRESS UP AND DOWN AND EXPRESS DOWN ON ALL OTHER WINDOWS
• WHEELBASE 165" (419.1 CM) 84" CA (STD)
• SPARE TIRE DELETE (STD)
• REAR AXLE 13 500 LB. (6 124 KG) DANA SPICER S14-110 SINGLE REDUCTION
• ALTERNATOR 220 AMPS
• REAR AXLE 4.30 RATIO Max road speed: 75 MPH
• AUXILIARY HARNESS 3' FOR HEADLAMPS AND TURN SIGNALS
• HORN DUAL-NOTE
• FRONT FENDER EXTENSION PAINTED BODY COLOR
• PAINT SOLID
• TIRES FRONT 225/70R19.5G TRACTION BLACKWALL GOODYEAR Max Axle Load: 7 940 lb.
• SNOW PLOW PREP PACKAGE includes (UNL) auxiliary harness for headlamps and turn signals (KW5) 220-amp alternator forward lamp wiring harness and (TRW) provision for cab roof mounted lamp/beacon
• ELECTRICAL PROVISIONS REAR OF FRAME UPFITTER BODY BUILDER WIRING includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn
• RECOVERY HOOKS FRONT FRAME-MOUNTED BLACK
• FRONT AXLE 7 500 LB. DANA SPICER 60-256 SINGLE-REDUCTION FRONT DRIVING
• DPF DIESEL PARTICULATE FILTER MANUAL REGENERATION customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
• AXLE LIMITED SLIP DANA SPICER TRUETRAC TORQUE PROPORTIONING LIMITED SLIP
• 5500 HD SERIES
• REAR VISION CAMERA DISPLAY INTEGRATED INTO RADIO (Shipped loose in cab for upfitter installation.)
• RUGGED DUTY SERVICE TRANSMISSION AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE ALLISON A1750RDS ratios 3.10 1ST 1.80 2ND 1.40 3RD 1.00 4TH 0.70 5TH 0.61 Rugged Duty Series
• DARK ASH SEATS WITH JET BLACK INTERIOR ACCENTS CLOTH SEAT TRIM
• BLACK
• ADDITIONAL FUEL 5 GALLONS
• Turbocharged
• Four Wheel Drive
• Power Steering
• ABS
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Running Boards/Side Steps
• AM/FM Stereo
• MP3 Capability
• Auxiliary Audio Input
• Split Bench Seat
• Adjustable Steering Wheel
• Power Door Locks
• Cruise Control
• A/C
• Traction Control
• Stability Control
• Traction Control
• Daytime Running Lights
• Automatic Headlights
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Front Side Air Bag
• Front Head Air Bag
• Passenger Air Bag On/Off Switch

• Vehicle
• Number of Passenger Doors: 2
• Front Frame Rating: - TBD -
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 1300
• Cold Cranking Amps @ 0° F (Primary): 1100
• Cold Cranking Amps @ 0° F (2nd): 1300
• Cold Cranking Amps @ 0° F (2nd): 1100
• Maximum Alternator Capacity (amps): 220
• Maximum Alternator Capacity (amps): 150
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 48
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 7500
• Gross Axle Wt Rating - Rear (lbs): 13500
• Gross Axle Wt Rating - Rear (lbs): 11000
• Curb Weight - Front (lbs): 5207
• Curb Weight - Rear (lbs): 3024
• Curb Weight - Rear (lbs): 2964
• Gross Vehicle Weight Rating Cap (lbs): 19500
• Gross Vehicle Weight Rating Cap (lbs): 16500
• Gross Combined Wt Rating (lbs): 30000
• Gross Combined Wt Rating (lbs): 26000
• Suspension
• Suspension Type - Front: Multi-Leaf
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 7500
• Spring Capacity - Rear (lbs): 13500
• Spring Capacity - Rear (lbs): 11000
• Axle Type - Front: Single Reduction
• Axle Type - Rear: Single Reduction
• Axle Capacity - Front (lbs): 7500
• Axle Capacity - Rear (lbs): 13500
• Axle Capacity - Rear (lbs): 11000
• Axle Ratio (:1) - Front: 4.30
• Axle Ratio (:1) - Rear: 4.30
• Shock Absorber Diameter - Front (mm): 51
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 15.375 x 1.625
• Rear Brake Rotor Diam x Thickness (in): 15.375 x 1.625
• Tires
• Front Tire Order Code: XMF
• Front Tire Order Code: XDK
• Rear Tire Order Code: YMF
• Rear Tire Order Code: YAL

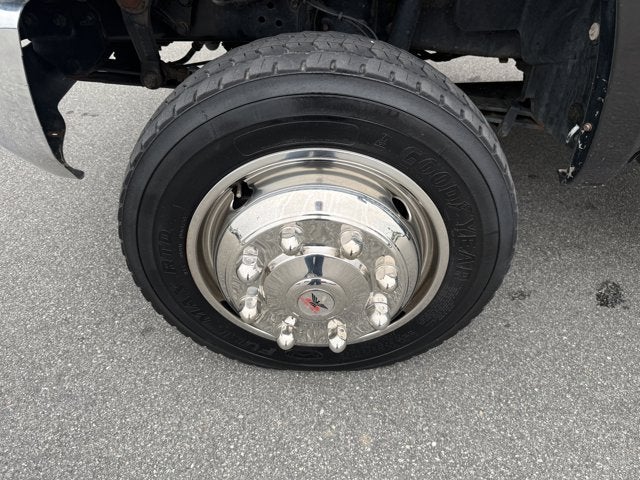

• Front Tire Size: 225/70R19.5G
• Rear Tire Size: 225/70R19.5G
• Front Tire Capacity (lbs): 7940
• Rear Tire Capacity (lbs): 15000
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Front: 640
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Rear: 640
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Number Of Tires Spare: 0
• Wheels
• Front Wheel Size (in): 19.5 x 6.75
• Rear Wheel Size (in): 19.5 x 6.75
• Front Wheel Offset (mm): - TBD -
• Rear Wheel Offset (mm): - TBD -
• # of Bolt Holes - Front: 8
• # of Bolt Holes - Rear: 8
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Front Bolt Pattern: 8 Hole JIS 10.83"
• Rear Bolt Pattern: 8 Hole JIS 10.83"
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 16.6
• Steering Ratio (:1), At Lock: 19.6
• Turning Diameter - Curb to Curb (ft): 52
• Turning Diameter - Wall to Wall (ft): 53.6
• Frame
• Frame Type: High Strength Low Alloy Steel
• Sect Modulus Rails Only (in³): 8.08 Front/10.93 Belly/8.47 Rear
• Frame RBM (N/A): 404000 Front/546500 Belly/423500 Rear
• Frame Strength (lbs): 50000
• Frame Thickness (in): 0.3125
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 65
• Fuel Tank Capacity, Approx (gal): 40
• Fuel Tank Location: Front & Rear
• Fuel Tank Location: Behind Rear Axle
• Exterior Dimensions
• Wheelbase (in): 165
• Length, Overall (in): 248.5
• Width, Max w/o mirrors (in): 84.0
• Height, Overall (in): 86.41
• Overhang, Front (in): 34.4
• Overhang, Rear w/o bumper (in): 49
• Front Bumper to Back of Cab (in): 115.47
• Cab to Axle (in): 83.86
• Cab to End of Frame (in): 133.1
• Ground to Top of Load Floor (in): 32.2 Front/34.7 Rear
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): 34.1
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 42.8
• Front Leg Room (in): 45.28
• Front Shoulder Room (in): 66.02
• Front Hip Room (in): 60.75
• Summary

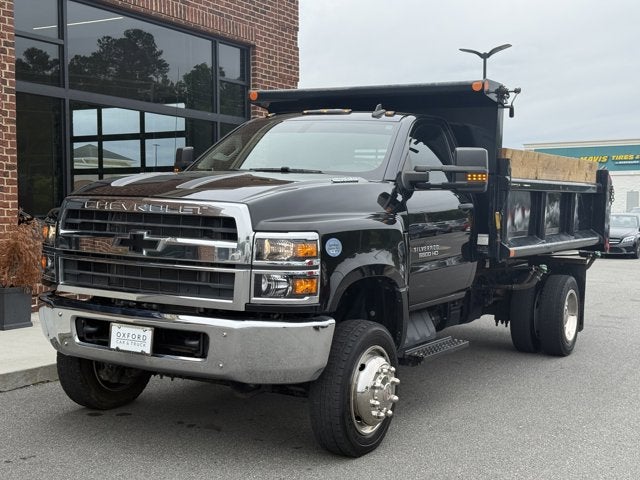

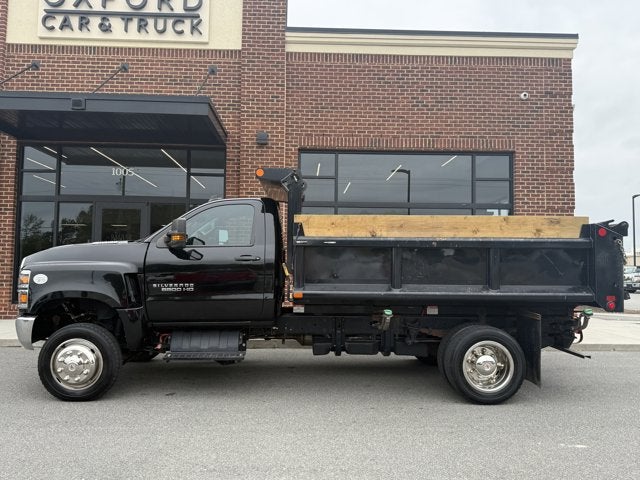

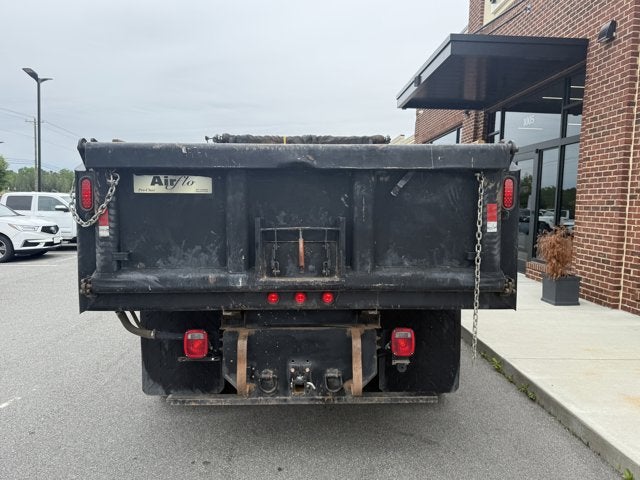

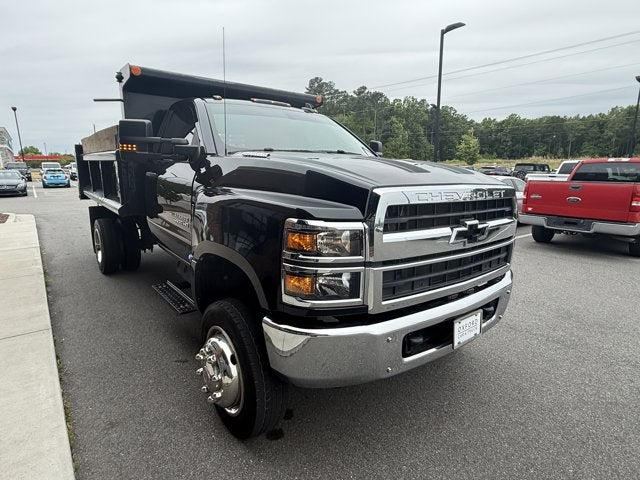

• Vehicle Name: Chevrolet Silverado MD
• Body Style: Regular Cab Chassis Cab
• Medium Duty Performance
• Driver Ratio: 1
• Torque @ Clutch Engage (ft-lbs): - TBD -
• Torque Converter: 1.764
• Static Loaded Radius (in): 15
• Max Speed For Gradeability: 75
